Part # NH600-LED (Night Hawk W/ STD. Metal Bracket)

$ 84.98

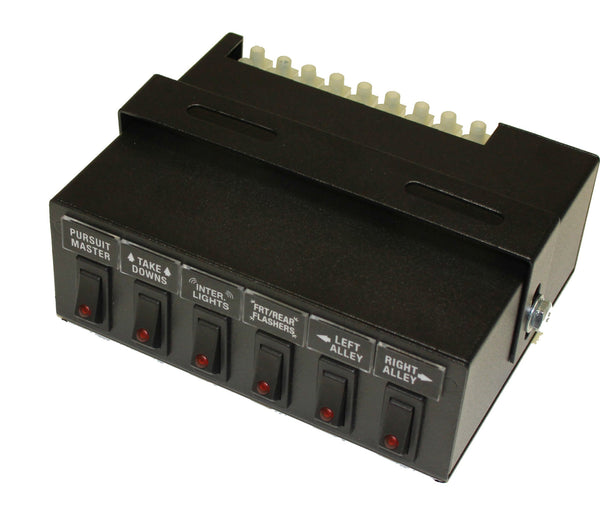

The Night Hawk Switch Panels are built with the finest components available. Six Position panels have been built and sold for many years for the Emergency Vehicle Marketplace with the same old designs with very little improvement; in fact, in many cases they have been cheapened with smaller switches, plastic mounting brackets and cheaper internal wiring and terminals.

We have taken the original designs from manufacturers like TSD, TST, Riverside Mfg., Federal Signal, Code 3, Able 2 and many others and made what we believe are several improvements that streamline the installation and overall design.

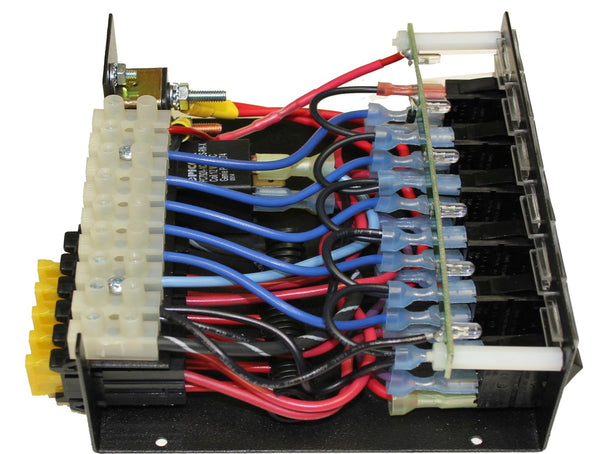

We have added our own Snap-In Legends with (36) Legend choices. Our Legends do not fade over time. Our Legend are designed so that the outer rim of the Legend lights up from the internal LED backlighting for enhanced aesthetics. We use Ultra Bright Green LED backlighting which last up to 10 times longer than incandescent backlighting. We use a Euro Style Terminal Block on the back which eliminates the cumbersome wire harness. All you have to do is strip your incoming wires, insert into the T.B. silos, and tighten down with screws built into the Terminal Blocks.

We use an internal 40A Relay with built-in resistor and a 40A Auto Rest Circuit Breaker for switch # 1 which is rated at 40A. The other (5) switches are rated at 20A each to give you plenty of power. We have an ATO Fuse Block on the back of the panel pre-loaded with ATO Fuses. The panel comes with a standard "U" style metal mounting bracket (not the cheap plastic). We offer both Solid Lit Switches and LED Effect Switches.

These panels are also sold under the part numbers of SB4020T (Star and SVP) and SW600TB-RED, SW600TB-LED (Bonner and Associates), and SW-SW600TBLED-RS (Adamson Industries Corp.).

See Spec Sheet Below For More Detail...


Click Here For Spec Sheet
